Studs-out bathroom remodel with a marble-look tile shower

One crew, one bathroom, taken down to the framing and rebuilt from the plumbing up. New shower pan, full waterproofing, large-format wave tile, a gold-trim niche, and a new porcelain floor.

Bathroom RemodelingTile WorkPlumbing Rough-InSavannah, GA9 Photos · 1 Video
Get a Free Estimate →
Finished shower in marble-look porcelain tile with a two-shelf pebble stone niche

What we walked into, and what we built.

This bathroom had an old shower that was leaking behind the walls. Instead of patching over it, we opened everything up to the studs so we could see exactly what we were working with: aging copper, a rotted base, and no real waterproofing anywhere.

We re-ran the hot and cold lines in PEX, set a brand-new shower base, and built the walls back with cement board and foam backer board. A 40-mil PVC pan liner went under a sloped mud bed, and every seam, corner, and screw head got a liquid waterproofing membrane before a single tile went up.

For the finish, the homeowners picked a large-format marble-look porcelain with a wave texture for the shower walls, a matching flat marble-look tile for the floor, and a gold-trimmed niche so the shower has a real focal point. New toilet, new valve trim, new vanity, and a floor-to-ceiling result that looks like it came out of a magazine.

  1. 01

    Demo to the studs

    Old tile, backer, and base removed so we could inspect framing and plumbing.

  2. 02

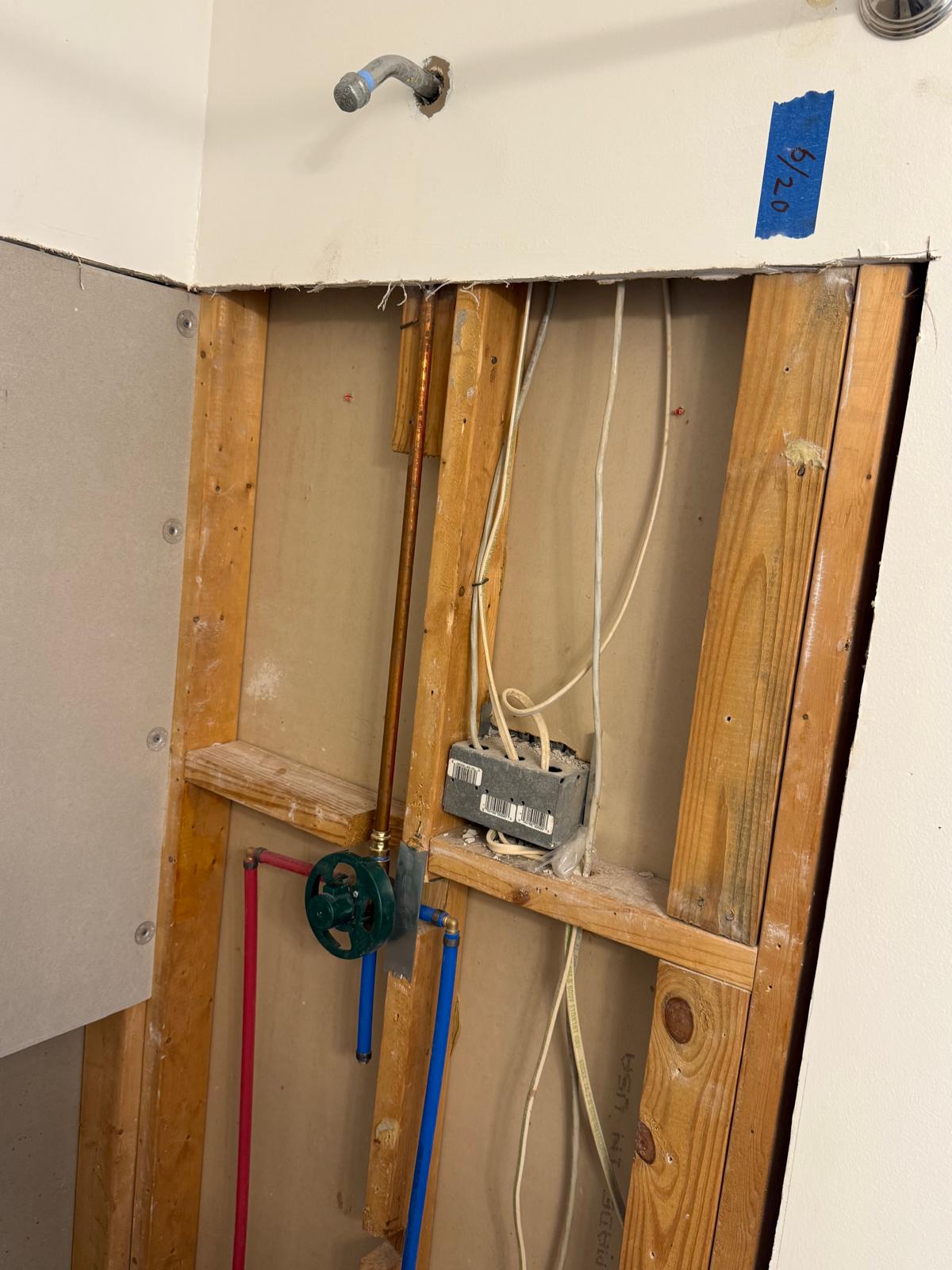

    New plumbing & shower base

    PEX supply lines, new mixing valve, and a level, properly supported shower pan.

  3. 03

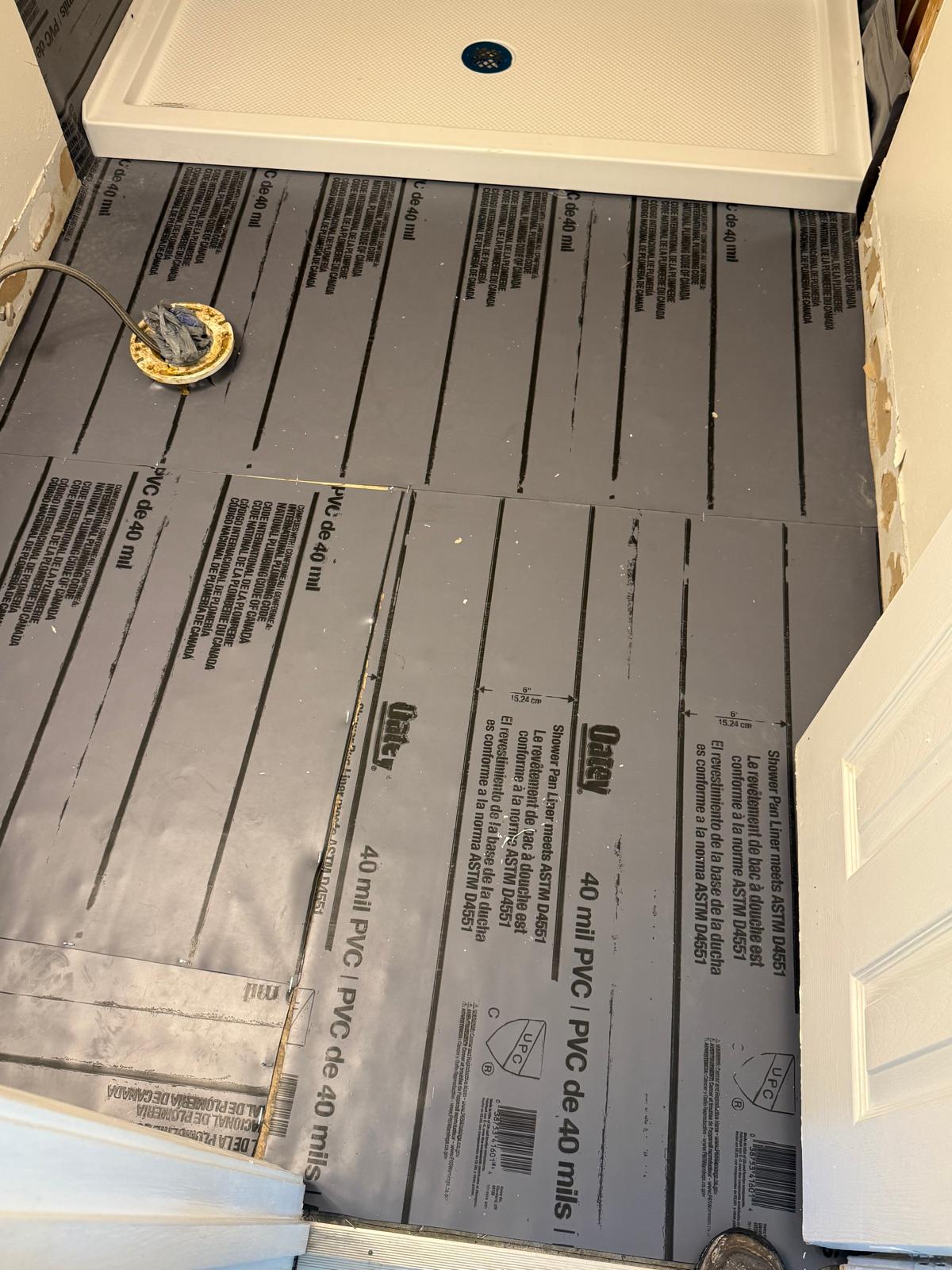

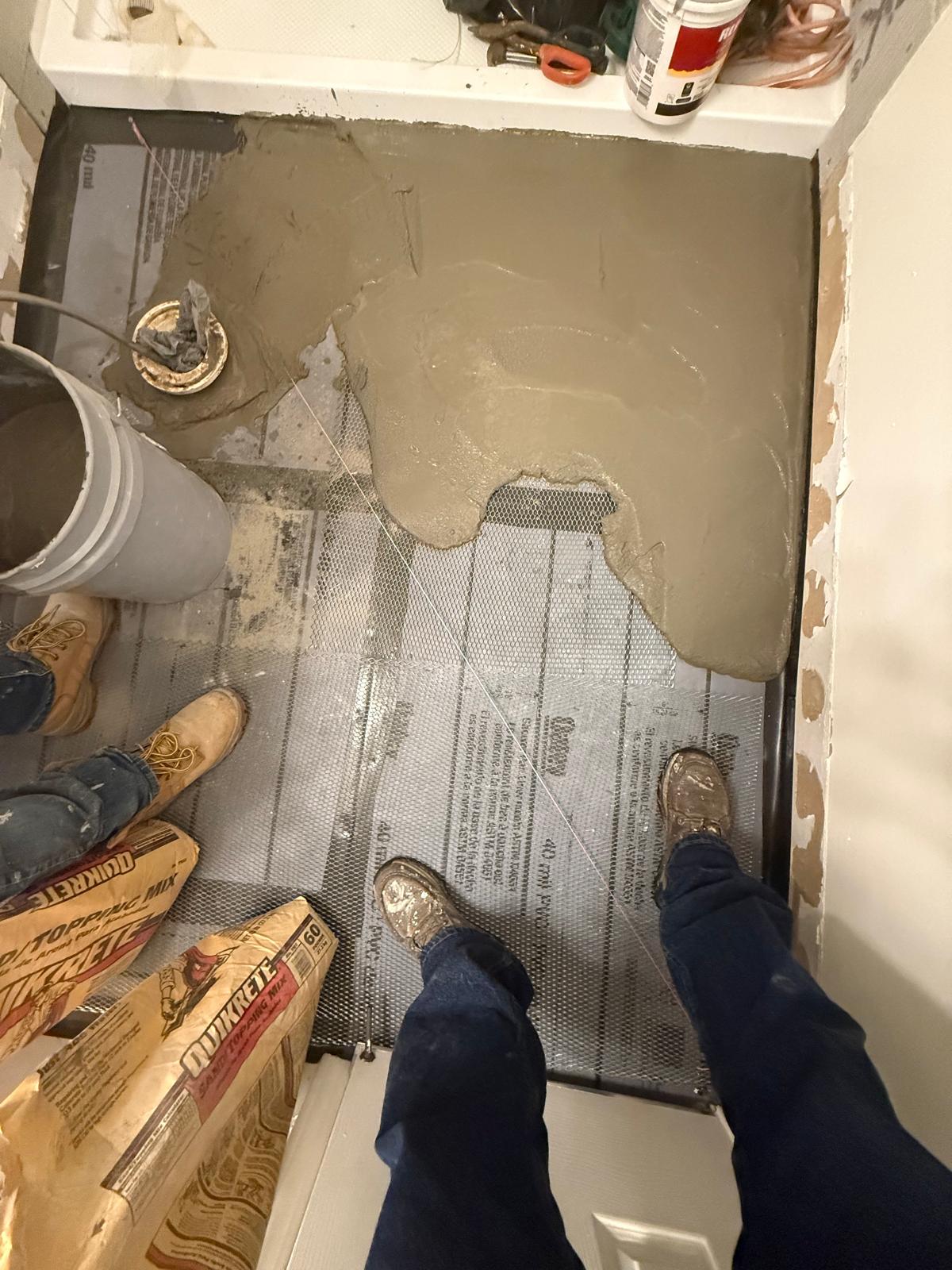

    Pan liner & mud bed

    40-mil PVC liner under a sloped mortar bed so water always finds the drain.

  4. 04

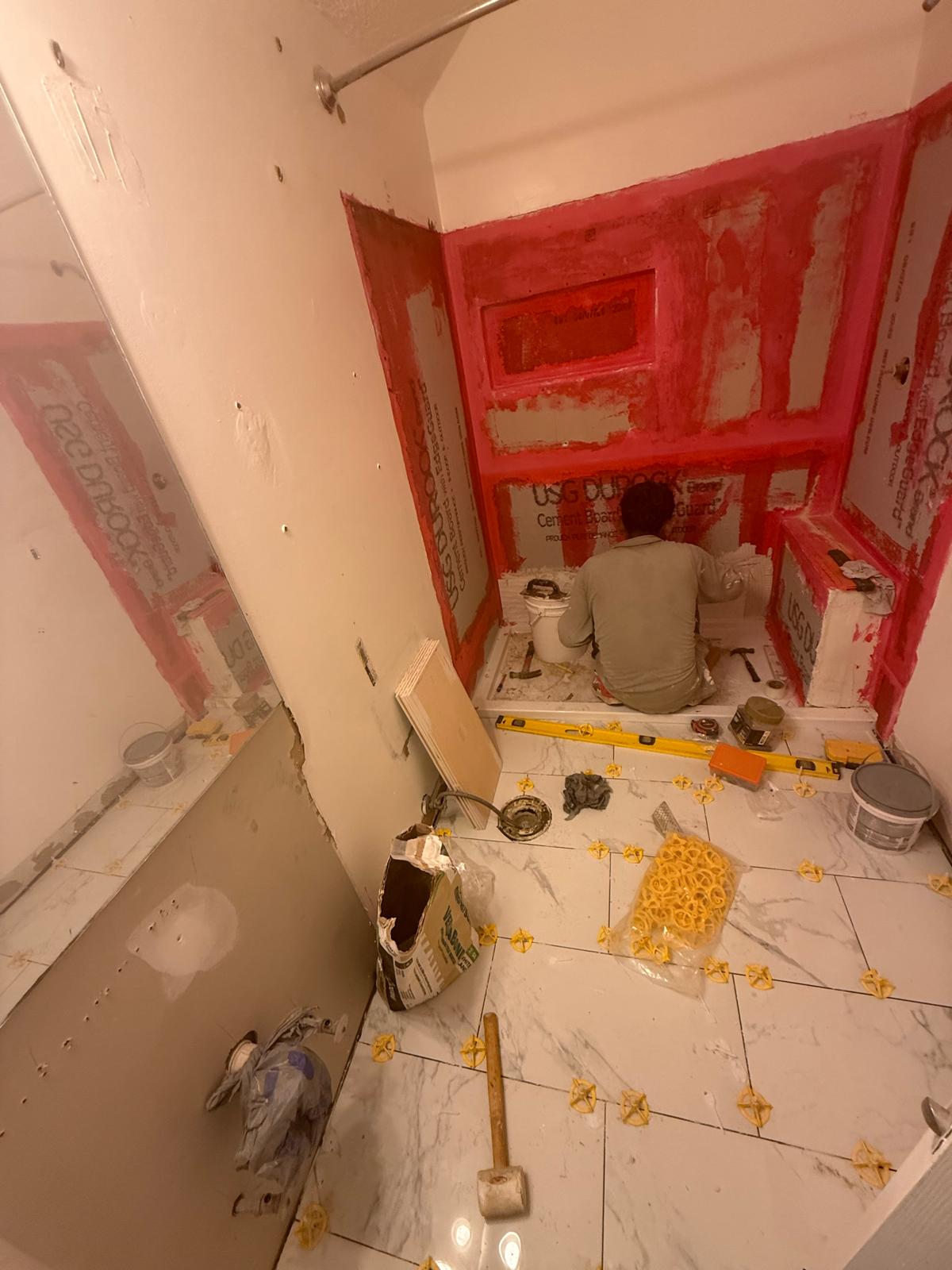

    Backer board & waterproofing

    Cement board and foam board, every joint and fastener sealed with liquid membrane.

  5. 05

    Tile, niche & finish

    Wave-textured marble-look walls, gold-trim niche, pebble accents, new floor, fixtures installed.

The remodel in motion.

Bathroom remodel walkthrough
